Cooling tower fill is one of those components that is easy to ignore when a cooling tower is running normally. You cannot see much of it from outside, and it does not have moving parts like a fan or pump. But inside the tower, the fill is doing a very important job: creating more contact between hot water and air so heat can be removed efficiently.

Whether your tower uses Cooling Tower Film Fill, Corrugated Fill, Splash Fill, or another type of Cooling Tower Media, its condition has a direct effect on cooling performance. In real projects, fill does not always fail because the material itself is poor. More often, problems come from scale, dirt, algae, poor water distribution, high temperature, chemical imbalance, or simply using the wrong fill structure for the operating conditions.

For customers in Southeast Asia, the Middle East, Japan, and Korea, these issues can be quite different. A tower in Thailand or Indonesia may deal with humidity, algae, and biological growth, while a tower in Saudi Arabia or the UAE may face hard water, high temperature, and dust. The good news is that with the right fill selection and a simple maintenance routine, the service life of Cooling Fill can be extended considerably.

1. What Is Cooling Tower Fill and Why Does It Matter?

Cooling tower fill, also called Cooling Tower Media or tower fill, is installed inside the cooling tower to increase the contact area between circulating water and air. Instead of allowing hot water to fall directly through the tower, the fill spreads the water over a large surface area or breaks it into smaller droplets.

This gives the air more opportunity to remove heat through evaporation. The basic idea sounds simple, but the design of the fill has a major influence on the final cooling performance.

How Film Fill Works

Film Fill is made from specially formed plastic sheets. When water flows over the sheets, it spreads into a thin water film. Air passes through the passages between the sheets, creating effective air-water contact.

This is why film fill cooling tower systems can achieve high heat transfer performance without requiring an extremely large fill volume. The downside is also quite clear: the passages are relatively narrow, so dirt, scale, suspended solids, and biological deposits can reduce performance if water quality is not controlled.

Why Fill Condition Affects Cooling Efficiency

As deposits build up on the fill surface, several things can happen at the same time. The available heat-transfer area becomes smaller, water distribution becomes less uniform, and airflow resistance can increase. In severe cases, heavily fouled fill can become much heavier than its original condition and may place additional load on the fill support structure.

So, when a cooling tower starts losing capacity, do not immediately assume that the fan or pump is the only problem. The condition of the tower fill should also be checked.

2. Cooling Tower Fill by Tower Type

There is no single fill design that works perfectly for every cooling tower. The cooling tower type, airflow direction, water temperature, water quality, available space, and maintenance conditions all matter.

Counterflow Film Fill

In a counterflow tower, air moves upward while water flows downward through the fill. Counterflow Film Fill is commonly designed with closely formed channels that provide a large contact area between air and water.

Counterflow Film Fill is a good choice when high thermal performance is important and the circulating water is reasonably clean. During maintenance, pay particular attention to scale and clogging because blocked passages can quickly affect airflow and water distribution.

Crossflow Film Fill

In a crossflow tower, air generally moves horizontally through the fill while water flows downward. Crossflow Film Fill is widely used in packaged and industrial cooling towers.

One practical advantage is that inspection and access can be relatively convenient depending on the tower design. However, the fill still needs regular inspection for dirt, algae, scale, and damaged sheets.

Splash Grid Fill

Splash fill uses a different principle. Instead of forming a thin water film over sheets, the water falls over bars or grids and is repeatedly broken into smaller droplets.

Splash Grid Fill is often considered when water contains more suspended solids or when fouling resistance is more important than achieving the maximum possible heat transfer per unit volume. The exact choice should be based on the tower design and actual water conditions.

Film Fill vs. Splash Fill

For relatively clean water, Film Fill can provide excellent thermal performance and compact installation. For dirtier water or applications where fouling is a major concern, splash-type fill may be worth considering.

In other words, the highest initial efficiency is not always the best long-term solution. A fill that is slightly more tolerant of fouling can sometimes deliver more stable performance over years of operation.

3. Common Cooling Tower Fill Materials

PVC Cooling Tower Fill

PVC is one of the most common materials used for cooling tower fill. PVC Cooling Tower Fill offers a good balance between cost, thermal performance, processing flexibility, and general chemical resistance.

It is widely used for standard industrial and commercial cooling tower applications. However, the actual operating temperature and water chemistry should always be checked before selecting PVC.

PP Cooling Tower Fill

PP Cooling Tower Fill is often selected when higher temperature resistance, greater toughness, or more demanding operating conditions are involved. Polypropylene can be a practical option for applications where standard PVC is not the best fit.

For hot climates such as parts of the Middle East, or for systems where water temperature is relatively high, PP should be considered during the design stage rather than simply replacing PVC with PP after a failure occurs.

CPVC Cooling Tower Fill

CPVC can be used where higher temperature capability is required compared with standard PVC. It is also useful for specific chemical and process conditions.

The important point is that material selection should be based on the actual operating temperature, chemical environment, water quality, and expected service conditions rather than material name alone.

4. Fill Type and Structure: Small Details Make a Big Difference

When buying tower fill, many customers focus only on length, width, and thickness. These dimensions are important, but they are not the whole story.

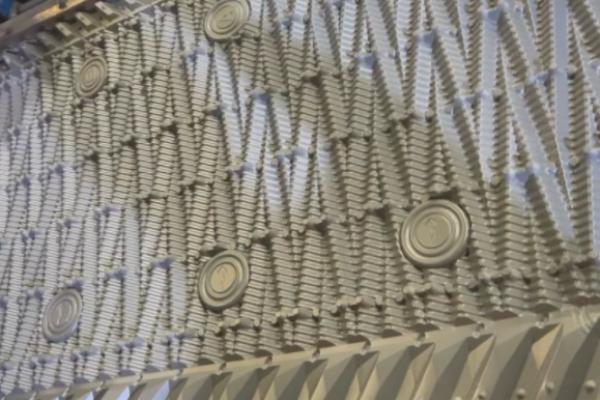

Flute Shape and Corrugated Fill Structure

Corrugated Fill uses formed channels to guide water and air through the fill pack. The flute angle, channel design, sheet spacing, and bonding method all influence the final performance.

A tighter structure can provide a larger effective surface area, but it can also be more sensitive to suspended solids and fouling. A more open structure may sacrifice some initial heat transfer performance while offering better resistance to clogging.

Pitch and Sheet Spacing

Pitch is another important specification. A smaller pitch can provide more surface area in the same volume, while a larger pitch normally provides wider passages and can be easier to maintain in dirtier water conditions.

Do not choose pitch simply because another cooling tower uses it. The right pitch depends on water quality, cooling duty, airflow, tower design, and maintenance capability.

Fill Angle and Airflow

The angle of the corrugation influences how water spreads and how air moves through the fill. Different structures can therefore produce different pressure drops and heat transfer characteristics.

For a replacement project, it is usually safer to match the existing fill structure or review the tower operating data before changing to a completely different design.

5. Performance and Efficiency: Do Not Look at One Number

When comparing Cooling Tower Fill, it is tempting to ask only, “Which fill has the highest cooling efficiency?” In practice, the better question is, “Which fill can maintain good cooling performance under my actual operating conditions?”

A fill with excellent clean-condition performance may not perform well after months of exposure to poor water quality. On the other hand, a slightly more open Cooling Fill may continue working reliably when the water contains suspended solids.

Key Factors to Consider

• Heat load and required cooling capacity
• Hot water temperature and cold water temperature
• Airflow direction and tower design
• Circulating water quality
• Suspended solids and hardness
• Operating temperature
• Available fill volume
• Expected pressure drop
• Cleaning frequency
• Local climate and environmental conditions

For Southeast Asia, biological fouling and high humidity can be important considerations. In the Middle East, high ambient temperatures, dust, and mineral-rich water can become bigger concerns. For Japan and Korea, seasonal temperature changes and system-specific water treatment should also be considered.

6. What to Check When Buying Cooling Tower Fill

Buying replacement tower fill is not simply a matter of ordering a certain number of sheets. Before placing an order, collect as much information about the existing tower as possible.

Check the Existing Fill Dimensions

Measure the existing fill width, length, height, thickness, and overall block arrangement. If possible, take photos of the existing fill and support structure.

For replacement projects, even a difference of a few millimeters can make installation difficult if the fill needs to fit into an existing frame.

Check the Fill Type

Confirm whether the tower currently uses Counterflow Film Fill, Crossflow Film Fill, Splash Grid Fill, or another design. Also check the pitch and flute structure.

Check the Material

Confirm whether the existing fill is PVC, PP, CPVC, or another material. If the old fill has become brittle, deformed, or softened, review the operating temperature before simply ordering the same material again.

Check Water Quality

This is one of the most important points. Ask about hardness, suspended solids, biological growth, pH, conductivity, and the existing water treatment program.

If the water is heavily fouled, choosing a very tight film structure just because it has a high clean-condition heat transfer rate may create more maintenance work later.

7. Standard Size or Custom Size?

Cooling tower fill is not a one-size-fits-all product. Standard sizes can be convenient for new projects, but custom sizing is often more practical for replacement and retrofit work.

Custom Length and Width

Many tower fill suppliers can manufacture fill blocks according to customer dimensions. Custom length, width, height, thickness, pitch, and structure can help reduce cutting and modification during installation.

Why Custom Fill Can Save Installation Time

If the existing tower has an unusual fill area, ordering the correct size from the beginning can reduce gaps and unnecessary cutting. Properly fitted blocks also help maintain the intended water and airflow pattern.

For an OEM or replacement project, it is useful to provide the supplier with drawings, old fill samples, dimensions, photos, or the cooling tower model whenever available.

8. Daily Cooling Tower Fill Maintenance

Good maintenance does not have to be complicated. The main goal is to catch small problems before they become expensive problems.

Regular Visual Inspection

Look for algae, mud, scale, broken sheets, deformation, discoloration, and blocked passages. If one area looks significantly dirtier than another, check the water distribution system as well.

Check Water Distribution

Film Fill works best when water is distributed evenly. Blocked nozzles, damaged spray pipes, or uneven water flow can create dry areas and overloaded areas inside the fill pack.

Cleaning the fill without fixing poor water distribution will usually only solve the problem temporarily.

Keep the Basin Clean

Leaves, dirt, rust particles, and other debris can enter the circulating water and eventually reach the fill. A clean basin and effective filtration system can reduce the amount of material entering the fill pack.

Inspect Air Inlet Louvers

Cooling Tower Air Inlet Louvers help control airflow and can also reduce the amount of large debris entering the tower. Damaged or heavily blocked louvers should be repaired or cleaned.

In dusty areas, especially industrial sites and parts of the Middle East, keeping the air inlet clean can make a noticeable difference to overall tower maintenance.

Inspect Drift Eliminators

Drift Eliminators are not part of the fill itself, but they work together with the rest of the tower system. Damaged drift eliminators can increase water loss and may affect the cleanliness and operating condition of the tower.

9. Cleaning Cooling Tower Fill: What Should You Avoid?

One of the most common maintenance mistakes is using aggressive cleaning methods without considering the fill material and structure.

Do Not Use Excessive Water Pressure

High-pressure water can remove deposits quickly, but excessive pressure may damage thin PVC or other plastic sheets. Cleaning pressure should be appropriate for the fill design and condition.

Do Not Ignore Chemical Compatibility

Not every cleaning chemical is suitable for every Cooling Tower Media. Before chemical cleaning, confirm compatibility with PVC, PP, CPVC, adhesives, support materials, and the rest of the cooling water system.

Do Not Clean a Severely Damaged Fill Forever

Cleaning can remove deposits, but it cannot restore a fill that has permanently lost its shape, become brittle, cracked, collapsed, or badly deformed.

If the fill structure is damaged, replacement is normally the more practical solution. Continuing to clean a physically damaged fill can waste maintenance time without restoring the original cooling performance.

10. A Practical Maintenance Routine for Different Climates

Southeast Asia

In Thailand, Vietnam, Malaysia, Indonesia, Singapore, and similar climates, high humidity and warm conditions can encourage algae and biological growth. Regular inspection of the fill, basin, spray nozzles, and air inlet areas is especially important.

Water treatment and filtration should work together with the physical maintenance program. If biological fouling keeps returning quickly, the problem is usually not solved by cleaning the fill alone.

Middle East

For Saudi Arabia, UAE, Qatar, Kuwait, Oman, and other hot and dry regions, dust, high temperature, hard water, and mineral deposits may be major concerns.

In these conditions, pay close attention to scaling and material temperature resistance. PP Cooling Tower Fill may be considered for applications where operating temperatures are demanding, while the actual selection should always be based on the tower's operating data.

Japan and Korea

Cooling towers in Japan and Korea may experience seasonal changes in ambient conditions. During scheduled shutdowns, inspect the fill carefully and compare its condition with previous inspection records.

A simple record of scale thickness, biological growth, damaged sections, and cleaning dates can help determine whether the existing maintenance schedule is working.

11. When Should Cooling Tower Fill Be Replaced?

There is no universal replacement date for every tower. The actual service life depends on material, temperature, water quality, operating hours, cleaning, UV exposure, chemical treatment, and mechanical condition.

Signs That Replacement May Be Needed

• Fill sheets are cracked, brittle, or seriously deformed.
• Fill blocks have collapsed or lost their original shape.
• Heavy deposits cannot be removed effectively.
• Water no longer spreads evenly through the fill.
• Airflow resistance has increased significantly.
• Cooling performance remains poor after cleaning and water distribution checks.
• Fill support structures are overloaded or damaged.

If the problem is only dirt or light scaling, cleaning may be enough. If the physical structure has failed, replacing the affected fill sections is usually the better option.

12. How to Extend the Service Life of Cooling Tower Fill

If I had to give one simple recommendation to a cooling tower operator, it would be this: do not wait until the fill looks badly blocked before doing something.

Good fill life is mainly about prevention. Keep the circulating water under control, maintain proper filtration, check the spray system, remove debris, inspect the fill regularly, and use a fill structure that matches the water quality.

A Simple Maintenance Approach

• Check the tower and fill condition during routine inspections.
• Keep spray nozzles and water distribution systems clean.
• Monitor water chemistry according to the site's treatment program.
• Remove leaves, dust, sediment, and other debris from the basin.
• Inspect Cooling Tower Air Inlet Louvers regularly.
• Check Drift Eliminators for damage or deformation.
• Clean film fill before deposits become difficult to remove.
• Record fill condition after each major maintenance shutdown.
• Replace damaged or permanently deformed sections instead of repeatedly cleaning them.

13. Final Thoughts

A good Cooling Tower Fill should not only provide high heat transfer performance when it is new. It should also remain practical to operate and maintain under the actual conditions of the cooling tower.

For clean water systems, high-efficiency Film Fill can be an excellent choice. For applications with more suspended solids or higher fouling risk, a more open Corrugated Fill or suitable splash structure may be worth considering. PVC, PP, and CPVC each have their own application range, so material selection should be connected to temperature and water conditions rather than price alone.

For replacement projects, getting the dimensions and structure right is just as important as selecting the material. Width, length, thickness, pitch, flute angle, block height, and installation arrangement should all be checked before production.

Most importantly, do not treat cooling tower fill as a “fit and forget” component. A few regular inspections and basic water management can prevent serious fouling, maintain heat transfer efficiency, and reduce unexpected replacement costs.

If you are replacing existing tower fill, it is useful to provide the fill dimensions, cooling tower type, water temperature, flow rate, photos, and application conditions. With this information, a supplier can recommend the right Cooling Tower Media, Film Fill, Cooling Fill, or Splash Grid Fill structure and manufacture the fill to the required size.

FAQs About Cooling Tower Fill Maintenance

How often should cooling tower fill be inspected?

The inspection frequency depends on the water quality and operating environment. Towers exposed to heavy dust, high humidity, biological growth, or poor water quality generally need more frequent inspection than clean industrial systems.

Can PVC Cooling Tower Fill be cleaned?

Yes. PVC film fill can normally be cleaned when deposits are still manageable, but the cleaning method should be suitable for the fill structure and material. Excessive mechanical force or incompatible chemicals can damage the sheets.

Is PP Cooling Tower Fill better than PVC?

Not necessarily. PP can be a better option for some higher-temperature or demanding applications, while PVC remains a practical choice for many standard cooling towers. The best material depends on operating temperature, water chemistry, cooling duty, and budget.

Can old Cooling Tower Fill be replaced with a different type?

It is possible in some retrofit projects, but the tower should be reviewed first. Changing from one fill structure to another can affect airflow resistance, water distribution, heat transfer, and required fill volume.

Can custom Cooling Tower Fill be manufactured?

Yes. Custom dimensions are commonly used for replacement and OEM projects. Customers can provide drawings, measurements, photos, or existing fill samples so the new fill can be produced to match the tower.
